Motorola Spectra. Motorola Spectra Mobile VHF Radio T83FWA7HA9AK 100 Watt RF Shelf High I am using Windows XP and am running the Astro Saber & XTS3000 CPS The Motorola Spectra has no COS line that is easily accessible, however the speaker leads both raise to about a >7 volts DC level when a valid PL'ed RX input signal is received
SPECTRA from www.qsl.net

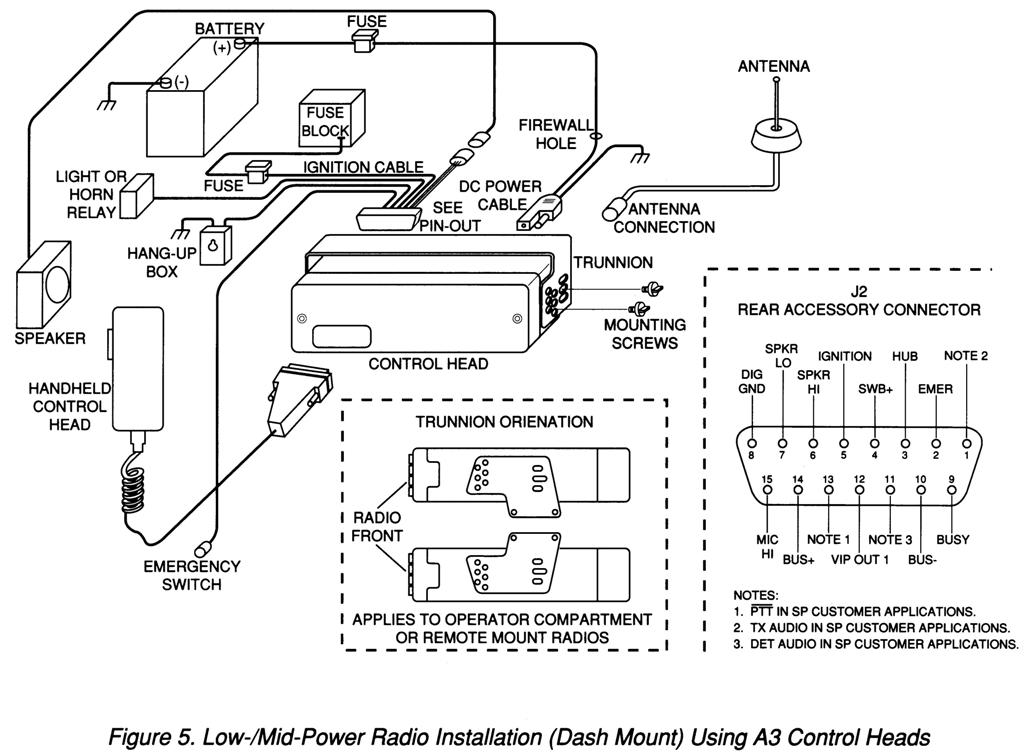

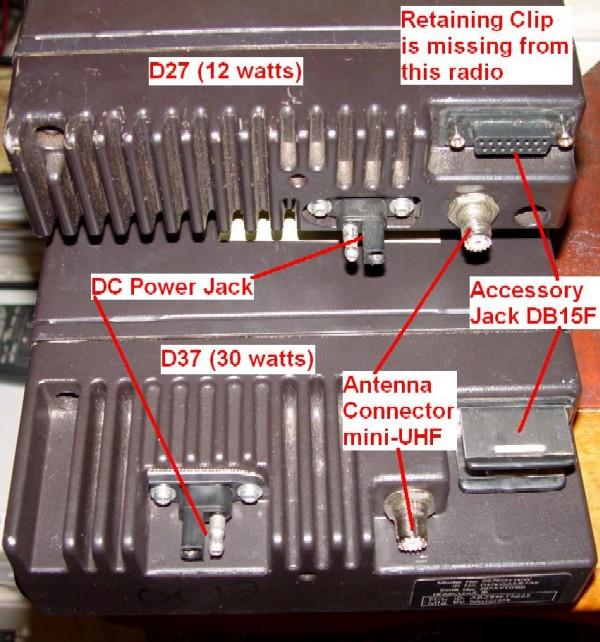

The pinout of the 15 pin accessory connector on the Spectra 900 is as follows: 1 TX Audio 2 Emerg 3 VIP out 2 (dash mount only, not used in remote mount) 4 SWB+ 5 Ignition (dash mount only, not used in remote mount) 6 SPKR Hi 7 SPKR Lo 8 DIG GND 9 BUSY 10 BUS- 11 DET Audio 12 VIP out 1 (dash mount only, not used in remote mount) 13 DATA PTT 14. As a new ham operator I am completely unqualified to give an opinion on a Spectra or Astro Spectra radio, however, as a veteran officer of twenty nine years it becomes a different matter.

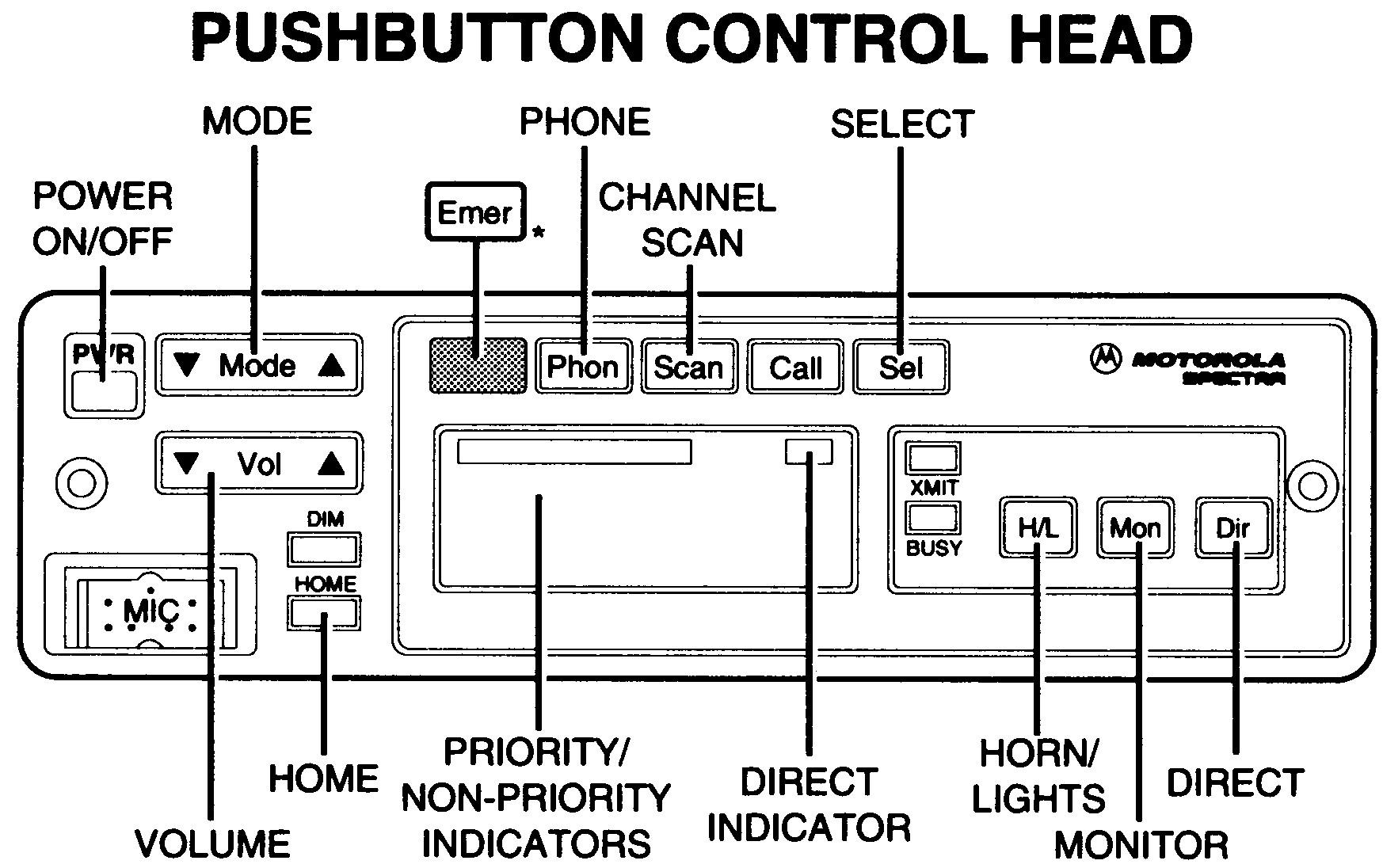

SPECTRA
I am using Windows XP and am running the Astro Saber & XTS3000 CPS To see what options are installed on a particular radio, visit the Flashcode Decoder Clean cab railroad radio (2 pages) Two-Way Radio Motorola 6880906Z72-O Operator's Manual
Motorola Spectra Mobile VHF Radio T83FWA7HA9AK 100 Watt RF Shelf High. The pinout of the 15 pin accessory connector on the Spectra 900 is as follows: 1 TX Audio 2 Emerg 3 VIP out 2 (dash mount only, not used in remote mount) 4 SWB+ 5 Ignition (dash mount only, not used in remote mount) 6 SPKR Hi 7 SPKR Lo 8 DIG GND 9 BUSY 10 BUS- 11 DET Audio 12 VIP out 1 (dash mount only, not used in remote mount) 13 DATA PTT 14. This works nicely to turn on a FET and gives a low (pulled down) signal to the COS line of the FOB so usbinvert can be used in the simpleusb configuration..

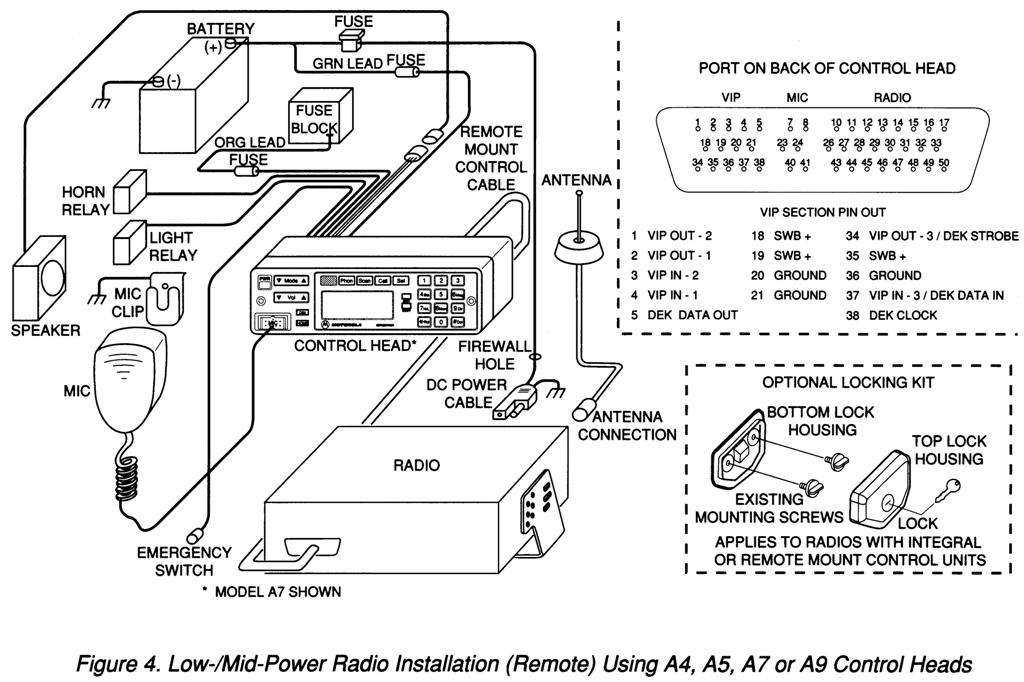

MOTOROLA SPECTRA INSTALLATION MANUAL Pdf Download ManualsLib. Motorola Spectra Introductory Information You should read this article before any of the other articles here in this section Many public safety agencies nationwide are being forced into new radios (if they stay with Motorola it's usually the MCS2000 series) and the Spectras are showing up in surplus in large quantities.
